VIDEOS






Threadboard Demonstration

This video provides a demonstration of moving a project off the bench onto a Threadboard. The project uses an Arduino, twin AAA batteries, breadboard, rocker switch and a small Wifi router PCB with no mounting holes.

The finished project not only caters for all of these components but also adds cable mounts / strain relief and a Threadbaord mounted cable tie.

This demonstration is a great example of Threadboard use.





From the benchtop...

Arduino and breadboard project on desktop

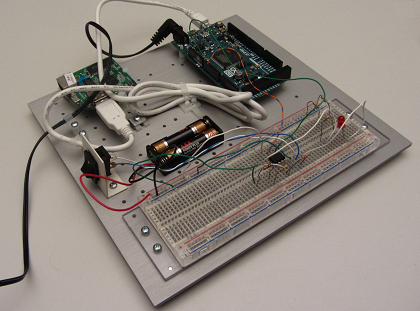

...onto a Threadboard!

Arduino and breadboard project on Threadboard




Revision B01, 2017-08-09
