Our hole patterns include support for a number of popular 'Off-The-Shelf' computing modules such as Arduino, Raspberry Pi, TI Beagle Board, Intel Galileo and PC/104 form factors

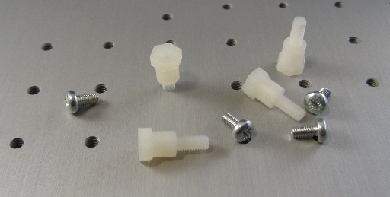

via hole patterns provided on the Threadboard. Only screwed mounting accessories are required and Arduino and Raspberry Pi computing modules may be mounted in a horizontal or vertical orientation.

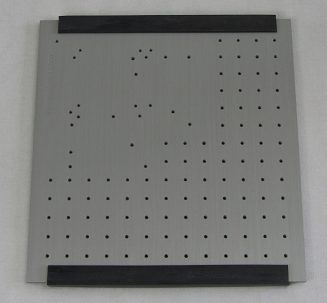

The remainder of the Threadboard is patterned with a 15mm x 15mm matrix of M3 tapped holes or support for the mounting of breadboards. |
Currently there is no standard or industry convention for the hole patterns on Threadboards - so we are creating our own standard, which we call M15.

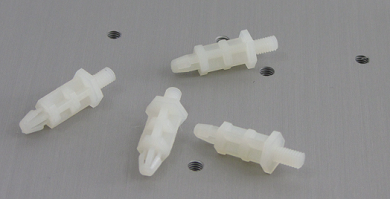

To assist in mounting devices a M15 hole stencil is provided with each unit and a range of flexible PCB mounting "risers" are also available.
Failing that some work and basic hand tools may be required to mount your PCB's and devices. Any requests to customise existing designs or to support new form factors and requirements are welcomed.
Refer also to the section Use and Safety.
| |
| |
S Pattern |
DR Pattern |
Flex Pattern |
Matrix Pattern |
|
| |
 |
 |
 |
 |
|
| |
Supporting: - RaspberryPi
- Arduino
in a vertical and horizontal orientation.
Intended for use with: - Breadboards
- or several PCBs.
|
Supporting: - RaspberryPi
- Arduino
in a vertical and horizontal orientation.
Intended for use with: - Breadboards
- PCBs
- Switches
- Adaptors
|
Supporting: - A wide variety of PCB dimensions
- Including ALL Microchip development boards.
Intended for use with: - Microchip Development Boards
- Breadboards
- PCBs
- Switches
- Adaptors
|
Supporting: - PCBs
- Electro-mechanical devices
- Breadboards
- Switches
- Adaptors
|
|
| |
Dimensions: 210mm x 220mm |
Dimensions: 210mm x 220mm |
Dimensions: 210mm x 220mm |
Dimensions: 210mm x 220mm |
|
| |

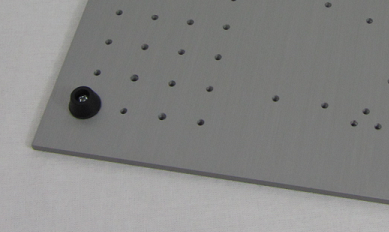

Mounting: Four rubber feet or extended legs for incline and double sided use with rubber bumpers |
Mounting: Four rubber feet or extended legs for incline and double sided use with rubber bumpers |
Mounting: Four rubber feet or extended legs for incline and double sided use with rubber bumpers |
Mounting: Four rubber feet or extended legs for incline and double sided use with rubber bumpers |
|
| |
Materials: Alumina, HDPE |
Materials: Alumina, HDPE |
Materials: Alumina |
Materials: Alumina |
|
| |
Hole Pattern: 50 x M3 x 0.5 tapped through holes |
Hole Pattern: 130 x M3 x 0.5 tapped through holes |
Hole Pattern: 148 x M3 x 0.5 tapped through holes |
Hole Pattern: 164 x M3 x 0.5 tapped through holes |
| |

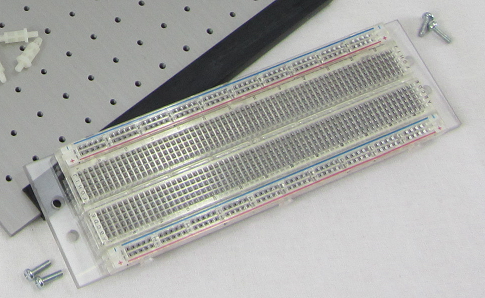

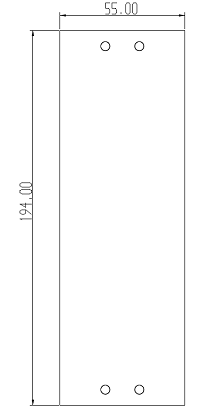

Breadboards:Supports 400 tie and 830 tie electronic breadboards (with mounting base) and PCB's |
Breadboards:Supports 400 tie and 830 tie electronic breadboards (with mounting base) and PCB's in a variety of orientations and positions due to the increased number of holes. |
Breadboards:Supports 400 tie and 830 tie electronic breadboards (with mounting base) and PCB's in a variety of orientations and positions due to the increased number of holes. |
Breadboards:Supports 400 tie and 830 tie electronic breadboards (with mounting base) and PCB's in a variety of orientations and positions due to the increased number of holes. |
| |
Models:
- Arduino DUO
- Arduino LEONARDO
- DuinoTECH Classic
- DuinoTECH Lite
- Netduino
- RaspberryPi 2 (Model B)
- RaspberryPi Model A+
- Pi Zero
|
Models:
- Arduino DUO
- Arduino LEONARDO
- DuinoTECH Classic
- DuinoTECH Lite
- Netduino
- RaspberryPi 2 (Model B)
- RaspberryPi Model A+
- Pi Zero
|
Supports: - A variety of PCBs and modules including all Microchip development boards using PCB Risers.
|
Supports: - Any type and size of PCB, breadboard, device and electro-mechanical systems.
|
|
| |
 |
 |
|
